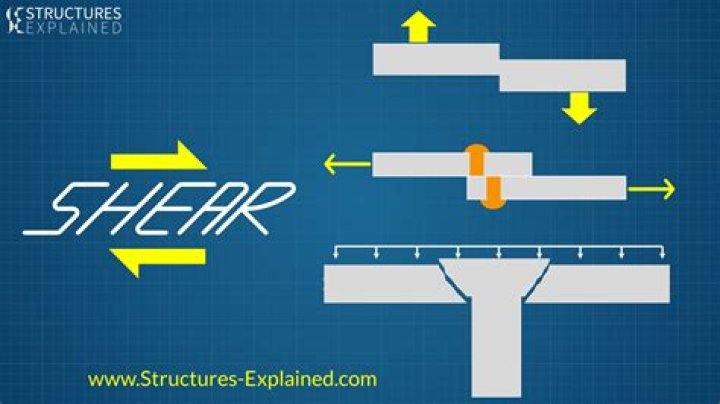

shear stress, force tending to cause deformation of a material by slippage along a plane or planes parallel to the imposed stress. The resultant shear is of great importance in nature, being intimately related to the downslope movement of earth materials and to earthquakes.
What is the principle of shear stress?
Shearing stress is a force that causes layers or parts to slide upon each other in opposite directions. An example of shearing stress is the force of two connecting rocks rubbing in opposite directions. Like the normal stress, the shear stress will also have a maximum at a given angle, θτ-max. …
What are examples of shearing?
Shearing wounds occur when forces moving in opposite directions are applied to tissues in the body. This can occur when the skin is stuck to a surface, such as a bed, while gravity forces the body downward on the bed. For example, imagine the head of Barbara’s bed is elevated so she can sit up to eat.
What is octahedral shear stress theory?
OCTAHEDRAL SHEAR STRESS CRITERION (VON MISES) Since hydrostatic stress alone does not cause yielding, we can find a material plane called. the octahedral plane, where the stress state can be decoupled into dilation strain energy and. distortion strain energy1.What is a real life example of shear stress?
1. Scissors. A pair of scissors is a classic example to demonstrate shear force. When an object, for example, a piece of paper is placed between the two metal blades of a pair of scissors, it gets divided into two parts only because of the shear force.
What is shear stress and shear strength?
Shear stress is relative and it changes in relation to the amount of shear load applied to a material per unit area. On the other hand, shear strength is a fixed and definite value in the general nature of a material [1, 2].
What causes shear stress?
Shear stress is caused by the flow of fluid across the surface and its value is directly proportional to the velocity of the surrounding fluid [38]. With the lack of sensors, shear stress could only be approximated with use of CFD techniques.
What is maximum shear stress?
The maximum shear stress is the maximum concentrated shear force in a small area. It is very critical for a structural engineer to locate and evaluate the maximum shear stress in a member in order to design the member in such a way to resist it.What is von Mises theory?
Von Mises stress is a value used to determine if a given material will yield or fracture. … The von Mises yield criterion states that if the von Mises stress of a material under load is equal or greater than the yield limit of the same material under simple tension then the material will yield.
What is a shear used for?A shear is a cutting implement that looks like a long pair of scissors. Also like scissors, this form of the noun is usually plural. You can cut metal, prune a tree, or cut up a chicken with shears. In farming, when you remove wool from a sheep, goat, or even a llama, you shear the animal.
Article first time published onWhat is shear stress measured in?
The unit for shear stress is the unit of load (or weight) divide by the unit of area; i.e. N/m^2 or Pa (Pascal) for the SI system and lbf/ft^2 for English system.
Is shearing a pressure?
Shear is defined as: A combination of downward pressure AND friction. It occurs at the deeper layers of tissue resulting in cell deformation and cell death.
What are the four types of shearing stress?
- 2.1 Pure.
- 2.2 Beam shear.
- 2.3 Semi-monocoque shear.
- 2.4 Impact shear.
- 2.5 Shear stress in fluids. 2.5.1 Example.
What is the symbol of shear stress?
Symbols: Shear stress: σ (sigma). Tensile/flexural stress: τ (tau). Units: pascals.
Is shear stress the same as pressure?
Pressure and shear stress have one major difference—that is, their direction. Pressure always acts normal to the surface whereas shear stress always acts parallel to the surface.
What is the difference between shear stress and stress?
When a force acts perpendicular (or “normal”) to the surface of an object, it exerts a normal stress. When a force acts parallel to the surface of an object, it exerts a shear stress.
What is the difference between shear stress and shear rate?
Shear stress is the force moving the upper plate divided by the plate’s area. Figure 5: Using the two-plates model to calculate the shear rate. Shear rate is the velocity of the moving plate divided by the distance between the plates.
What is the difference between shear stress and bearing stress?
Shear Stress For bolted joints without a preload shear, stress is calculated like bearing stress: force over area. Like bearing stress, it is also an average stress and the maximum shear will be higher. If a bolted joint has no separation or clearance, a direct shear situation—shear without bending—can occur.
What is von Mises failure criteria?
The von Mises criterion states that failure occurs when the energy of distortion reaches the same energy for yield/failure in uniaxial tension. Mathematically, this is expressed as, In the cases of plane stress, s3 = 0.
Why we use von Mises theory?
. The von Mises stress is used to predict yielding of materials under complex loading from the results of uniaxial tensile tests. The von Mises stress satisfies the property where two stress states with equal distortion energy have an equal von Mises stress.
What is Ludwig von Mises known for?
Ludwig von Mises, (born Sept. 29, 1881, Lemberg, Austria-Hungary [now Lviv, Ukraine]—died Oct. 10, 1973, New York City), Austrian-American libertarian economist known for his contribution to liberalism in economic theory and his belief in the power of the consumer. … 1966), a treatise on economics.
What does octahedral plane mean?
The octahedral plane is the plane that is equally inclined to the directions of the three principal stresses. For any given stress of state there are eight such planes.
Why should we use maximum shear stress theory for ductile material?
For brittle material, which does not fail by yielding but fail by brittle fracture, this theory gives a satisfactory result. … According to this theory, a ductile material begins to yield when the maximum principal strain reaches the strain at which yielding occurs in simple tension.
Which failure theory is more conservative?
Of the failure criteria, the Tresca is the most conservative for all materials, the von Mises the most representative for ductile materials, and the Rankine the best fit for brittle materials.
Why shear stress is maximum at 45?
This is due to the reason that the plane of maximum shear stress in case of uniaxial tension is inclined at 45 degrees with the axis. Brittle materials do not undergo significant plastic deformation. They thus fail by breaking of the bonds between atoms, which usually requires a tensile stress along the bond.
Where does shear stress occur?
As shown above, shear stresses vary quadratically with the distance y1 from the neutral axis. The maximum shear stress occurs at the neutral axis and is zero at both the top and bottom surface of the beam. Shear flow has the units of force per unit distance.
Why shear stress distribution is parabolic?
When shear load is applied, the impact of the shearing stress throughout the rectangular cross-section of the beam occurs. … The distribution of shearing stress on the cross-section of the beam represents a parabolic curve where the maximum shearing stress occurs at the neutral axis of the beam.
What is another word for shear?
In this page you can discover 38 synonyms, antonyms, idiomatic expressions, and related words for shear, like: sever, cleave, cut, crop, fleece, lop, prune, remove, snip, slash and shave.
What are the various types of shearers?
- 1.1 Alligator shear.
- 1.2 Bench shear.
- 1.3 Guillotine.
- 1.4 Power shears.
- 1.5 Throatless shear.
- 1.6 Tin snips.
What does high shear stress mean?
The shear strength of a material is heavily dependent on its cross-sectional area. The wider and thicker a section is, the higher the shear strength of the component.
What injuries are caused by shearing?
Pressure injuries, or pressure ulcers, are caused by shearing, friction, moisture, and pressure. These injuries affect many patients every year, particularly those who have limited mobility. Risk factors for pressure injuries are the same as for skin tears.
