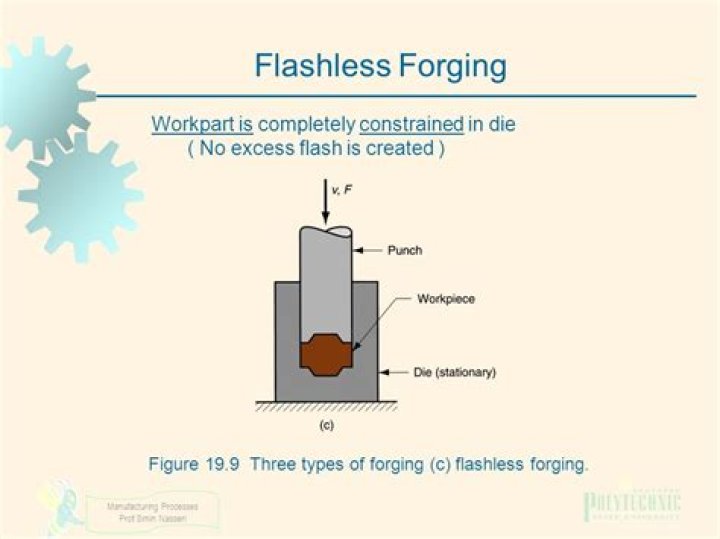

Flashless forging  It is true closed die forging in which metal deformed in a die cavity permits virtually no excess metal to escape  During this process the preform is totally enclosed in the die cavity so that no flash is formed  In actual practice, a thin fin or ring of flash may form in the clearance between the …

Which type of forging is used for Flashless forging?

One variation of impression-die forging is called “flashless forging”, or “true closed-die forging”. In this type of forging, the die cavities are completely closed, which keeps the workpiece from forming flash. The major advantage to this process is that less metal is lost to flash.

What does Flash forging mean?

Flash — Metal in excess of that required to fill completely the blocking or finishing forging impression of a set of dies. Flash extends out from the body of the forging as a thin plate at the line where the dies meet and is subsequently removed by trimming.

What is meant by precision forging?

Precision forging is defined as a flashless near net-shape forging operation which generates high quality parts concerning surface quality and dimensional accuracy. In the past, precision forging processes have been industrially established for axis-symmetric parts, e.g. gearwheels and steering pinions.

Why does barreling occur in open die forging?

Barreling is caused primarily by frictional forces that oppose the outward flow of the workpiece at the die interfaces and thus can be minimized by using an effective lubricant. Barreling also can develop in upsetting hot workpieces between cold dies.

What is hammer forging?

Forging is a manufacturing process where metal is pressed, pounded or squeezed under great pressure into high strength parts known as forgings. … Hammers with a driving force of up to 50,000 pounds, pound the metal into shape with controlled high pressure impact blows.

What is closed die forging?

Closed Die Forging is a forging process in which dies move towards each other and covers the workpiece in whole or in part. … The shape of the forging is incorporated in the top or bottom die as a negative image. Coming from above, the impact of the top die on the raw material forms it into the required forged form.

What is cold forging?

Cold forging is a metal shaping & manufacturing process in which bar stock is inserted into a die and squeezed into a second closed die. The process, completed is at room temperature or below the metal’s recrystallization temperature to form a metal into a desired shape or configuration.

What is the difference between forged and drop forged?

Striking a piece of hot metal with a hammer is forging, and blacksmiths have been doing this for centuries. … Drop forging – Hammering hot metal into dies. Press forging – instead of forcing hot metal into a die with a hammer blow, it is pressed into the die with hydraulic pressure.

What are the benefits of precision forging?

Precision forging is an innovative manufacturing process for the flashless, near-net shape production of high-performance components. Outstanding material characteristics as well as a reduced process chain and a high material efficiency are the essential advantages of precision forging.

Article first time published on

What is roll forged?

Roll forging, also known as roll forming, is a forging method that uses opposing rolls to form a metal part. Even though roll forging uses rolls to produce parts and components, it is still considered a metal forging process and not a rolling process. … It is also used to produce things like knives and hand tools.

What factors are involved in precision forging?

The main factors having an effect on the process of forging are: tool and preform temperature, slug geometry, press settings, process speed, lubrication and cooling, and tool shape and quality. Proper temperature is critical for the reliable operation of the tools.

What is gutter in forging?

A shallow impression machined around the periphery of a forging die impression outside the flash land that acts as a reservoir for excess metal.

What is hammering metal called?

A blacksmith is a metalsmith who creates objects primarily from wrought iron or steel, but sometimes from other metals, by forging the metal, using tools to hammer, bend, and cut (cf. tinsmith). … The place where a blacksmith works is called variously a smithy, a forge or a blacksmith’s shop.

What is flash and gutter?

Gutter flashings are installed beneath the roof line and inside the gutter itself. This will prevent water from running behind a gutter and leaking into the building materials causing damage. They are usually 10 feet long, but can be made to fit specific roofs.

What is barreling in metal rolling?

Barrelling is a mechanical processing method for cleaning small metal parts thoroughly from slag, scale, grease and rust. Deburring and rounding of workpiece edges is also possible. Barrelling also removes minor material defects such as scratches.

What is barreling in forging?

Friction forces at the die-work interface oppose the spreading of the material near the surfaces, while the material in the center can expand more easily. The result is to create a barrel shape to the part. This effect is called barreling in in metal forging terms.

How do you stop barreling?

Barreling can be reduced by applying effective lubricant on the surface of the platens.

What is open and closed die forging?

In open die forging, the billet is placed between multiple dies that do not enclose the metal entirely. … Closed die forging process, is also referred to as impression die forging. It utilizes high pressure to compress the metal piece to fill an enclosed die impression for required shapes.

What is open die forging process?

Open die forging involves the shaping of heated metal parts between a top die attached to a ram and a bottom die attached to a hammer, anvil or bolster.

Why is forging better than casting?

Forging creates metal products with generally higher strength that are typically tougher than metal processed in castings. … The larger the metal section being worked on, the harder it is to forge. With casting, molten metal flows into a cavity in a mold or die, which allows for more complex shapes to be easily produced.

What is Rotary forging?

Rotary forging is a specific cold forging technology which uses incremental steps locally with the material to accurate, precision results. … Rotary forging is a combination of two actions, rotational and an axial compression movement, for precise component forming that can be carried out cold or hot.

What is the difference between hammer forging and press forging?

Drop Forging – With drop forging (also called hammer forging), the metal billet is inserted into the die and hammered with multiple blows. This process continues the billet is shaped into form. … With press forging, the metal is shaped in a uniform way from the surface to the center.

What steel is best for hammers?

The main steels used to make hammers are 4140, 4340, and 1045 steel. If you are making a hammer in your forge, you may want to use 1045 steel due to its simplicity and convenience. However, if you are looking for a steel that will create a sturdy and long-lasting hammer, you may opt to use 4340 or 4140.

Can you weld forged steel?

Forged steel can be welded by any method steel can be welded gas, electric or laser. Forged steel is just steel and you just have to pick the most convenient method that you have available, whichever one that is.

Why material is heated before forged by hammer?

In a hot forging process, a part is heated over the material recrystallization temperature prior to forging. This process enables a part to be molded with minimum pressure and produces finished parts that have a reduced residual stress, thus making it easy for machining or heat treatment.

Are hand forged knives better?

Traditionally, forged knives tended to be harder and therefore had better blade retention than most stamped knives. Here, too, the lines are blurring, but generally speaking, a forged knife is likely to hold an edge somewhat better than a similar stamped knife.

Is cold forging good?

The major advantages of cold forging are close dimensional tolerances, good surface finish quality, and the use of lower cost materials to obtain the required strength by work hardening without requiring heat treatment.

Is cold forging strong?

Cold forging improves the strength of the metal by hardening it at room temperature. Hot forging results in optimal yield strength, low hardness, and high ductility by hardening the metal at extremely high temperatures.

Can you cold forge a knife?

To practice cold forging prior to producing finished knives, he recommends intentionally cold forging steel until it cracks to have a better understanding of how much the steel can take. Cold reduction leads to an increase in hardness of the steel through an increase in dislocation density.

What is isothermal forging?

Isothermal forging is a closed-die process in which the dies and the workpieces are heated to the same temperature, so that forming can take place without loss of temperature in the workpiece.
