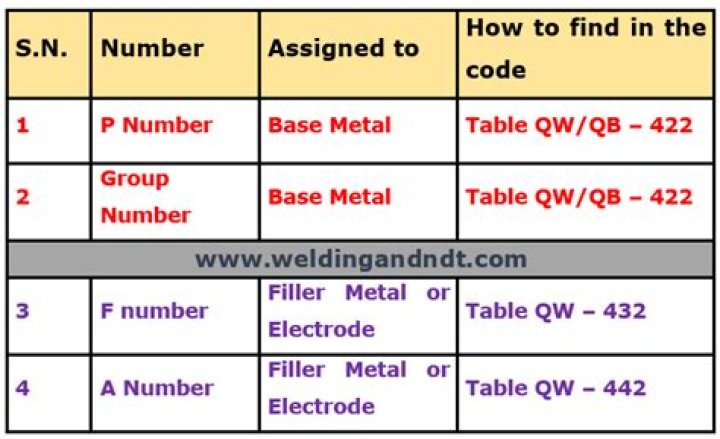

F-Numbers are groupings of filler metals or electrodes with similar welding characteristics. A-Numbers are groupings of similar weld metal alloy chemistries.
What are a-numbers in welding?
What is an A-Number? An A-Number is a deposited weld metal composition grouping defined in ASME Section IX Table QW-442 & Paragraph 404.5. The grouping of A-numbers is based on the measured values of six elements, namely Carbon (C), Chromium (Cr), Molybdenum (Mo), Nickel (Ni), Manganese (Mn), and Silicon (Si).
What is a Number in electrode?
The first two digits represent the resulting weld’s minimum tensile strength, measured in pounds per square inch (psi). For example, the number 70 in a E7018 electrode indicates that the electrode will produce a weld bead with a minimum tensile strength of 70,000 psi.
What is group Number in welding?
The Group number in welding assigned additionally to the P number materials. These group numbers divide a P number to several group numbers for the purpose of welding procedure qualification when impact testing is a requirement by the construction code.What is F no in WPS?
The F Number: F number grouping (for filler metals) is done to reduce the number of welding procedure specifications (WPS) and welder performance qualifications. The basis for F number grouping is usability characteristics.
What is ASME code welding?
Codes govern the different welding processes and procedures that exist. These standards exist to protect human life and standardize the products used in different mechanical and engineering fields. … One particular organization that sets these codes is the American Society of Mechanical Engineers (ASME).
What is SFA in welding?
SFA is a universial classification system for filler materials. 5.1 is for carbon steel electrodes for SMAW, hence the designation E-6013. These type of specifications provide for uniform identification but I’ll be darned if I know what “A/SFA” actually stand for.
What is ASME P number?
A P-Number is an alphanumeric designation assigned to a group of materials. These materials are grouped based on their similar weldability and mechanical characteristics. P-Numbers are assigned to base metals to reduce the number of welding and brazing procedure qualifications required to perform work.How do you determine welding Numbers?
3) How to determine the A number in Welding Procedure Specification: It can be obtained from procedure qualification coupon. The small piece of welding can be removed and chemical analysis test to be performed. Then the obtained chemical composition must be compared against the table QW-422 and A number to be selected.
What is F6 in welding?F6 – Most Bare Wire ER70 / ER309 / FCAW (Fluxcored) F43 – Inconel. Backing: indicaes if a root pass/backing plate is needed. WITH – qualifed to weld on a backing (root pass or baking plate) WITHOUT – qualifed to weld root passes. Progression: indicates the direction of the weld.
Article first time published onWhat is F6 filler metal?
Once you reach F6; it is a dumping ground for all filler metals used to join ferrous metals. It wasn’t always the case. AWS used different F numbers to differentiate filler metals used with different welding processes.
What P number is 321 stainless steel?
AlloyCP321.08.045
When to use 6010 or 7018?
E 6010 electrode can be used on painted, galvanized, and unclean surfaces, while E 7018 is used on clean or new sheet metal. E6010 is used for deep penetration welding, while E 7018 is used for welding metal that tends to crack, producing quality welds with excellent toughness and high ductility.
What does 5P welding rod mean?
A 5P welding rod is also known as an E6010 rod. It consists of an all-purpose filler metal designed for use with direct current (DC) and suitable for welding pipes.
What does 6010 mean on a welding rod?
The “60” in 6010 means 60,000 pounds’ tensile strength (the ability to resist being pulled apart) per square inch. The “1” means it can be run in any position—flat, horizontal, vertical, or overhead.
Does welding melt metal?
As opposed to brazing and soldering, which do not melt the base metal, welding is a high heat process which melts the base material. Typically with the addition of a filler material. … Pressure can also be used to produce a weld, either alongside the heat or by itself.
What are essential variables in welding?
Essential variables are those to which a change, as described in the specific variables, is considered to affect the mechanical properties of the weldments; hence any change in any essential variable will require requalification of the welding procedure.
How do I select filler metal for WPS?
- The base material to be welded. …
- The welding position. …
- Regulatory specifications and codes. …
- Design requirements. …
- Shielding gas. …
- Post-weld heat treatment. …
- Welding equipment.
What are the different welding positions?
- Flat position (1G or 1F)
- Horizontal Position (2G or 2F)
- Vertical Position (3G or 3F)
- Overhead Position (4G or 4F)
What is the a number in welding procedure specification?
A number gives a similar chemical composition in a “as weld” condition. The A number is essential variable in most of welding process in ASME Code Section IX. … Please note the A number in WPS does not refer to the filler wire or electrode chemical composition; it refers to the deposited weld metal chemical composition.
What is the meaning of AWS welding?
The American Welding Society (AWS) was founded in 1919 as a non-profit organization to advance the science, technology and application of welding and allied joining and cutting processes, including brazing, soldering and thermal spraying.
What is AWS number in welding?
The American Welding Society (AWS) numbering system can tell a welder quite a bit about a specific stick electrode including what application it works best in and how it should be used to maximize performance.
What is AWS and ASME?
The difference between ASME and AWS is that ASME is for welding procedure and welder qualification. AWS is for both welder and welding procedure qualification including inspection, erection and fabrication. Contracts may specify one or the other code.
What is a Class 3 weld?
Class 3 material is a designation of the Resistance Welding Manufacturers Alliance (RWMA). … Class 3 is often used to weld stainless steel, nickel alloys and other highly resistive – strong materials that require high weld forces.
What are p8 materials?
P-NumbersBase Metal (Typical or Example)8Austenitic Stainless Steels Group 1 – Grades 304, 316, 317, 347 Group 2 – Grades 309, 310 Group 3 – High Manganese Grades Group 4 – High Molybdenum Grades9A, B, CTwo to four Nickel Steels10A, B, C, FVarious low alloy steels
Where is Pwht required?
Current design codes in the pressure vessel and piping industries, such as the BSI and ASME codes, specify that PWHT is required if the thickness of the parts being welded exceeds a specified value, that limit usually depending on the Charpy test properties of the material and the minimum service temperature required.
How many welding positions are there as per ASME Section IX?
The 1998 edition of Section IX has more than 200 variables, many with multiple conditions, for 13 welding processes and special processes.
What is P6 material?
P6 steels are carburizing steels manufactured according to tool steel quality standards and are commonly available in the market.
What material is P45?
ASME P# / GROUP#MATERIAL GRADETRADE NAMEP45SB463 & SB424Carpenter (alloy) 20 / Incoloy 825P45SB409 & SB688Incoloy 800HT / AL6XNP46SB536RA330P51SB265 Gr. 2Titanium
What is backing in welding?
Backing is defined as material placed at the root of a weld joint for the purpose of supporting molten weld metal. … Welding the second side of a double-sided butt joint is regarded as welding a joint with backing because the first weld run put in from the second side is supported by weld metal from the first side.
What is F number in filler metal?
The F number grouping of filler metals refers to their similarity on their usability characteristics. The usability determines the ability of a welder to deposit a sound weld metal with a certain filler metal.
