What is a starter? Starters are devices that control the use of electrical power to equipment. As the name implies, starters “start” motors. They can also stop, reverse, accelerate and protect them. Starters are made from two building blocks: contactors and overloads.
What is the use of motor starter?
A motor starter is an electrical device that is used to start & stop a motor safely. Similar to a relay, the motor starter switches the power ON/OFF & unlike a relay, it also provides a low voltage & overcurrent protection. The main function of a motor starter is; To safely start a motor.
Do all motors need starters?
The need for a starter is dictated by the type of motor. Generally speaking, low-power motors do not require starters, although what’s considered low power may be debatable. For instance, small dc motors that run on low voltages (24 V or less) don’t require starters.
Why does an electric motor need a starter?
Starters are used to protect DC motors from damage that can be caused by very high current and torque during startup. They do this by providing external resistance to the motor, which is connected in series to the motor’s armature winding and restricts the current to an acceptable level.Where is the starter motor?
The starter motor is attached to end of the crankshaft via a flywheel and a pinion gear. When the ignition is turned the starter motor activates and an electromagnet inside pushes a rod out with the pinion gear. This rotates the flywheel and the engine is turned over.
How do I choose a motor starter?
When choosing a motor starter, you should consider the load, the type of motor, and the network before deciding which one is best for you. Soft Starters: Soft starters steadily ramp up the speed of a motor to prevent large current surges and to minimize the amount of wear on electrical contacts in the system.
What are the types of starter?

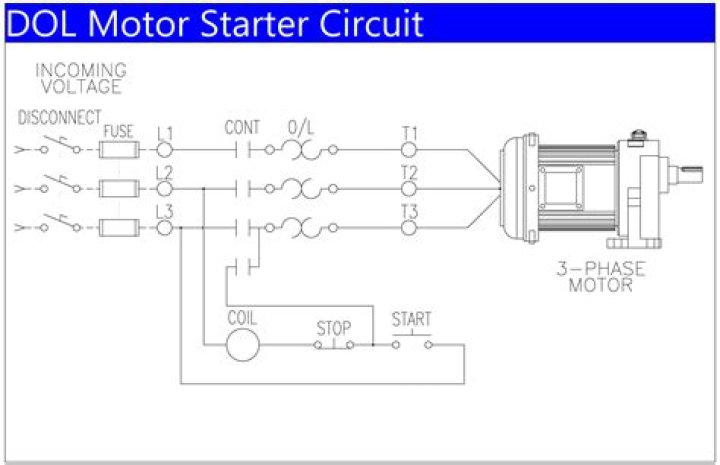

- Direct-On-Line Starter. The direct-on-line starter is the simplest form of motor starter, other than a manual starter. …
- Rotor Resistance Starter. …
- Stator Resistance Starter. …
- Auto Transformer Starter. …
- Star Delta Starter.
How long does a starter last?
On average, a starter motor lasts for 100,000-150,000 miles. In many cars, the starter motor lasts for the lifetime of the vehicle; however in some cars, it can fail prematurely.What is the difference between a motor starter and a disconnect?
A Motor Starter is a device or combination of devices used to power and control a motor. … In addition, a Motor Starter generally includes another device (Contactor, Soft Start, Variable Frequency Drive, etc.) to control the motor. Disconnecting Means – a method of manually disconnecting power.
What are the symptoms of a faulty starter?- Something sounds off. …
- You’ve got lights but no action. …
- Your engine won’t crank. …
- Smoke is coming from your car. …
- Oil has soaked the starter. …
- Look under the hood. …
- Tap the starter. …
- Adjust the transmission.
What are the two types of starter motor?
The two main types of starters are Manual Starters and AC Magnetic Motor Starters, commonly known as Motor Starters.
What are the 4 types of starters?
- Stator resistance starter.
- Star delta starter.
- Autotransformer starting.
- Rotor resistance starters.
- Variable stator frequency starting.
What type of motor is a starter motor?
The electric starter motor or cranking motor is the most common type used on gasoline engines and small diesel engines. The modern starter motor is either a permanent-magnet or a series-parallel wound direct current electric motor with a starter solenoid (similar to a relay) mounted on it.
What are the basic components of a motor starter?
- Armature. The armature is an electromagnet, mounted on the drive shaft and bearings for support. …
- Commutator. …
- Brushes. …
- Solenoid. …
- Plunger. …
- Lever Fork. …
- Pinion. …
- Field Coils.
What is an IEC motor starter?
IEC Motor Starters. IEC motor starters are used to operate polyphase induction motors and protect them against running or stalled overcurrents, and feature components that meet IEC design standards. Configurations include open frame units or starters enclosed in metallic or non-metallic pre-wired enclosures.
Is starter required for single-phase motor?
Single-phase induction motor is not self-starting, because the magnetic field produced is not a rotating type. In order to produce a rotating magnetic field, there must be some phase difference. So generally capacitor is used for this purpose.
How do you size a motor overload?
The overloads are determined using 125% of the FLA, 7A x 1.25 = 8.75A. The maximum allowable size for the overloads is 9.8A. The overloads can be sized at 140% of the FLA if the overloads trip at rated load or will not allow the motor to start, 7A x 1.4 = 9.8A.
Is a motor starter a contactor?
A motor starter is simply a contactor PLUS an overload relay and is rated by motor HP or amperage. If there is no overload relay it is not a starter any longer. It’s back to being just a contactor. The starter employs overload relays to protect the motor from load surges by shutting it down to prevent overheating.
What HP motor requires a starter?
Essential and Need of Starter with Motor Motors below 1 HP (0.7457) is directly connected to the power supply without starter because their armature resistance is very high and they have the ability to afford and pass higher current due to high resistance.
How much does a starter motor cost?
How much does it cost to replace a starter motor? Based on Fixter’s repairs and replacement figures, the starter motor replacement cost (UK) ranges between £228 and £498. The average cost of a starter motor replacement balances out in the UK at £290.
Can you replace a starter motor yourself?
You can buy a new starter, which is rather expensive, or you can buy a rebuilt starter, which is just as good as a new one [source: Allen]. If the problem is really your starter, save yourself a trip to the mechanic and replace it yourself. … Disconnect all the bolts that hold the starter to the block, using a ratchet.
What can go wrong with a starter motor?
Battery issues – such as low voltage, or poor connection. Cable connections are corroded or broken. Excessive oil or paint on the starter mounting surface (in which case it might just need a good clean) Incorrectly wired or faulty neutral safety switch.
How do I know if my starter motor needs replacing?
- Loud clicking. Often times the first sign of starter trouble will be a loud click or series of clicks that occurs when the key is turned. …
- Grinding noises. …
- Buzzing. …
- Intermittent engine cranking. …
- Other issues that can prevent no starts.
How much should it cost to replace a starter?
How Much a Starter Replacement Costs. The cost of rebuild parts for a starter can range from as little as $50 to as much as $350. A brand-new starter can range from $80 to over $350. For a qualified mechanic to replace or rebuild your starter, you can expect to pay between $150 and over $1,100.
How long does it take a mechanic to replace a starter?
How long does it take to replace a starter motor? Depending on the type of vehicle, typically a starter motor replacement will take a mechanic between 2 and 4 hours to complete from start to finish.
How do you tell if its your starter or your battery?
Last, Check The Starter The battery sends a burst of energy to the start which uses this energy to turn the engine over and get it car started. If you put the key in the ignition, but only hear a click when you turn the key, you’ve got a problem with your starter.
Can I start a car with a bad starter?
Jump-starting a car with a bad starter motor will not help start the engine. Jump-starting will only boost battery power. A manual transmission car with a bad starter maybe push or tow started but an auto transmission car can not. In this post, you’ll learn how to easily diagnose if your starter motor is bad.
Is it the alternator or starter?
The alternator converts mechanical energy into electrical energy allowing the car to charge the battery while you are driving. The starter works in a different way converting electrical energy of the auto into mechanical energy. Both the alternator and starter can wear out over time needing repair or replacement.
How do you maintain a starter motor?
- Clean the Connectors. The battery and starter motor are connected through a series of special connector wires. …
- Tighten the Mounting Bolts. The starter motor is held in place with mounting bolts. …
- Clean the Solenoid. …
- Clean the Terminals. …
- Inspect the Flywheel.
What are some main characteristics of a starter motor?
A starter motor is an electrical device that is utilized to start & stop a motor reliably. Same as a relay, the motor starter switches the power OFF/ON, and unlike a relay, it also presents low voltage and overcurrent protection. The primary functions of a motor starter are: To safely stop a motor.
How many starters are there?
Currently, there are 25 different starter Pokémon, including the electric mouse Pikachu. Some starters have a special place in the hearts of fans for their long-time contribution to the Pokémon series, which can be seen with Charmander, Bulbasaur, and Squirtle.
