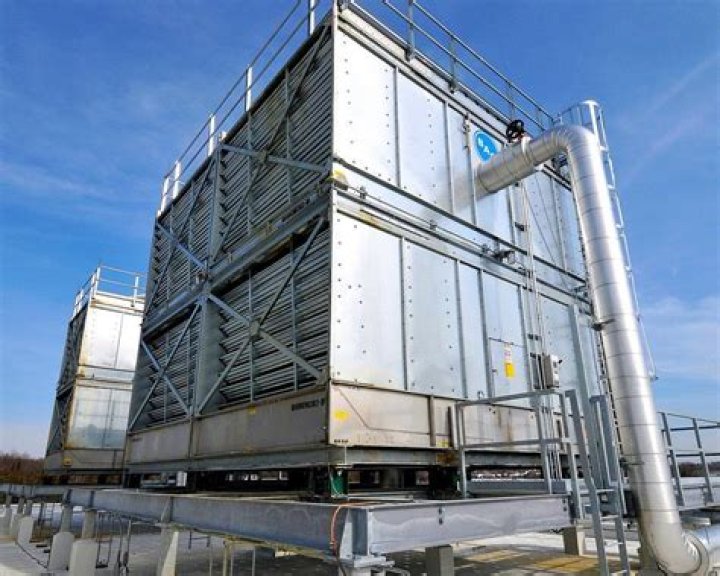

The condenser water pump is used to circulate condenser water either in an open or a closed circuit system. The condenser water pump circulates return condenser water from the chiller back to the cooling tower. The cooling tower then cools the condenser water, and the condenser water is supplied back to the chiller.
What does a cooling water condenser do?
A water-cooled condenser is a heat exchanger that removes heat from refrigerant vapor and transfers it to the water running through it. Having the refrigerant vapor condensed on the outside of a tube does this. In doing so, the vapor condenses and gives up heat to the water running inside the tube.
How does a condenser water loop work?
The condenser loop uses a cooling tower to supply cooling water to the water-cooled electric chiller in the chilled water loop. Hence, the supply side of this loop consists of the cooling tower and the demand side consists of the electric chiller.
What is a condensed water system?
Condensing systems, and more specifically cooling towers are used with water-cooled chillers, plate frame heat exchangers, and water-cooled DX Units. The purpose of the condenser is to extract heat from a cooling loop and to transfer that heat to another medium (water, air, ground, ect).What is the purpose of a condenser?
3 Condenser. The function of the condenser in a refrigeration system is to transfer heat from the refrigerant to another medium, such as air and/or water. By rejecting heat, the gaseous refrigerant condenses to liquid inside the condenser.
What is the difference between chilled water and condenser water?
While chilled water systems are used to absorb heat energy from within a building or process, condenser water systems are used to remove that heat energy from the building and reject it to the atmosphere. … In essence, the condenser water system connects the chiller to the cooling tower through supply and return piping.
What is the purpose of using a condenser?
The purpose of the condenser is to receive the high-pressure gas from the compressor and convert this gas to a liquid. It does it by heat transfer, or the principle that heat will always move from a warmer to a cooler substance.
What is evaporated water?
Evaporation is the process by which water changes from a liquid to a gas or vapor. Evaporation is the primary pathway that water moves from the liquid state back into the water cycle as atmospheric water vapor.What is the chiller system?
A chiller (cooling water circulation device) is a general term for a device that controls the temperature by circulating a liquid such as water or heat medium as a cooling liquid whose temperature was adjusted by the refrigerant cycle. … It is referred to as a “chiller” because it is often used for cooling.
How do condensers work?Principle of operation. A condenser is designed to transfer heat from a working fluid (e.g. water in a steam power plant) to a secondary fluid or the surrounding air. … As the vapor cools, it reaches the saturation temperature, condenses into liquid and releases large quantities of latent heat.
Article first time published onDo chillers produce condensate?
Air-Cooled Chillers: A typical air-cooled chiller can feature propeller fans or mechanical refrigeration cycles to draw ambient air over a finned coil to condense the refrigerant. The condensation of the refrigerant vapor in the air-cooled condenser enables the transfer of heat to the atmosphere.
What is condenser approach in HVAC?
Condenser approach temperature is simply defined as the difference between the condenser liquid refrigerant temperature and the outlet condenser water temperature. The closer these temperatures are to each other, the more efficient the heat transfer.
Does condenser change pressure?
Temperature profile inside the condenser The temperature of the refrigerant decreases during the desuperheating and sub-cooling processes, but remains constant during the condensing process (see Figure 7.3). … The refrigerant pressure changes little from desuperheating to subcooling.
In which type of condenser water and steam do not mix directly?
Surface condenser is a type of steam condenser in which the steam and cooling water do not mix with each other. And because of this, the whole condensate can be used as boiler feed water. It is also called as non-mixing types condenser. The figure above shows the longitudinal section of a two pass surface condenser.
Where does the condensing take place in a typical condenser?
Condensing is system dependent and usually takes place in the lower two-thirds of the condenser. Once the saturation or condensing temperature is reached in the condenser and the refrigerant gas has reached 100 percent saturated vapor, condensation can take place if more heat is removed.
In which condenser requires high maintenance cost?
Disadvantages: Capital cost and maintenance cost are high. Jet condenser is bulky compared to the jet condenser.
What is condenser pressure?
Condensing pressure: The pressure at which the refrigerant is phase changing from a vapor to a liquid. Evaporating pressure: The pressure at which the refrigerant is phase changing from a liquid to a vapor.
Does coolant go through the condenser?
It travels to the condenser, which looks like a miniature radiator and is mounted in the engine compartment. Just as a radiator does with hot engine coolant, the condenser pulls heat from the hot vapour, transferring it to the outside air. As the refrigerant cools, it condenses into a liquid.
Why does water enter the condenser at the bottom?
Water must enter from the bottom of the condenser in order to fill the entire condenser. If water enters from the top it drains from the bottom and never fills it up. A full condenser is necessary to maximize the heat transfer for condensation.
What is the difference between chiller and condenser?
Chillers are designed as radiators, which are either water-cooled or air-cooled. … The condenser heat exchanger is the major component that rejects heat from the chillers to air. Applications and Usages. Cooling towers are generally used to provide cooled water to electric power generation and mechanical processes.
What is the difference between HVAC and chiller?
Industrial chillers are built to handle the cooling of various manufacturing processes (brewery cooling, hydroponic cooling, plastics cooling) directly. Conventional HVACs are built to regulate the environmental temperatures within designated spaces.
What does HVAC stand for?
Defined: HVAC stands for Heating, Ventilation, and Air Conditioning. HVAC refers to the different systems used for moving air between indoor and outdoor areas, along with heating and cooling both residential and commercial buildings.
What type of pipe is used for chilled water?
The most common type of pipe used for chilled water is carbon steel pipes. Carbon steel chilled water pipes are commonly referred to as black steel pipes because of the black color surface of the carbon steel.
What happened to glass of water being exposed to sunlight for few days why?
When solid water is exposed to enough heat, it will melt and return to a liquid. … In the water cycle, evaporation occurs when sunlight warms the surface of the water. The heat from the sun makes the water molecules move faster and faster, until they move so fast they escape as a gas.
Why is salt left behind when water evaporates?
Salt particles are carried throughout the solution surrounded by water particles. As the water evaporates less and less water molecules are present to keep the salt particles apart. … Sea water is trapped and allowed to evaporate leaving behind the solid salt.
Why is evaporated water so clean?
Evaporation is the process where a liquid, in this case water, changes from its liquid state to a gaseous state. … During the process of evaporation, impurities in the water are left behind. As a result, the water that goes into the atmosphere is cleaner than it was on Earth.
How much does a condenser cost?
Coil CapacityPart OnlyInstallation Cost1.5-2.0 ton$575 – $800$475 – $6502.5 ton$625 – $975$535 – $7503.0 ton$735 – $1,055$600 – $8353.5 ton$775 – $1,025$775 – $985
Is chiller same as freezer?
The difference between a freezer and a blast chiller is that a freezer holds food at below freezing temperature while a blast chiller cools food quickly by blowing cold air over the food product and gradually dropping the temperature in the chamber.
Do you insulate condenser water?
RE: Condenser Water System Design I would recommend insulation in any case, as you are assumably working with low temperature differences and high flows, so any degree makes difference for water cooled heat pumps.
What is the temperature of the condenser water which is entering the chiller?
The condenser water enters at around 27 ° C (81 ° F) so the refrigerant needs to be a greater temperature than this.
What happens if condenser water temperature is too high?
The higher the condensing water temperature is, the harder the chiller has to work, which increases kW consumption at the compressor.
