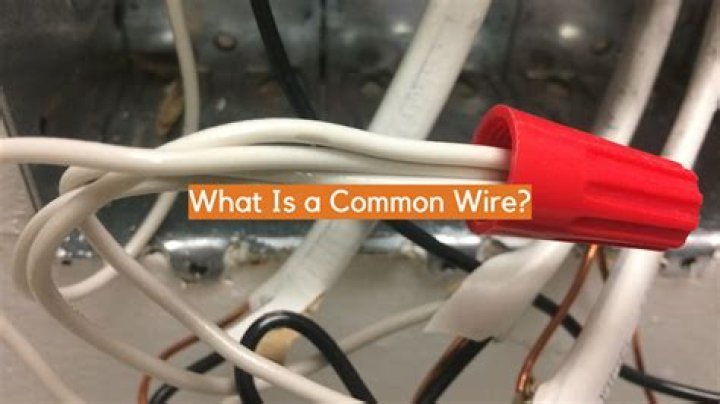

A C-wire, or a common wire, runs from your low voltage heating system (24v) and carries continuous power to your thermostat. In today’s electric market, most newer heating and cooling systems have C-wires, which guarantees compatibility for the installation of all smart thermostats.

Is common wire the same as ground?

Common and Neutral are both terms for the part of a circuit that is connected to the center tap of a transformer. Common is more used in electronics, Neutral is the norm in electrical wiring. Ground is a connection that makes a good connection to the Earth.

Does the common wire carry current?

To sum up, a live wire carries the full load current, while a neutral wire carries some current, only when the loads are not balanced.

What is the common wire in a house?

The “common” is the “neutral” or “ground” wire, depending on the type of circuit. In normal US residential wiring, you’ll have a black “hot” wire, a white “neutral” or “common” wire, and a green or bare “ground” wire.

What is a common wire on a switch?

The common is for the live wire that supplies the input voltage to the switch. The other terminal is marked as L1 and is the output to the light fixture. … If you’re circuit is only one way, you can ignore this terminal and it will still work. This is because two way switches can also be used on one way circuits.

What color is the common wire?

Red, Black, and White are the colors of switch wiring for three-ways. Red and Black are connected to the switches if the White is used for neutral. The White is often referred to as Common, but the colored wires are also used as hot wires.

Does common wire have voltage?

A C-wire, or a common wire, runs from your low voltage heating system (24v) and carries continuous power to your thermostat.

Is common wire load or line?

Remember that one side of the common on the three way is the line side and the other common is the load side or switch leg. The two wires that connect between the 3-ways switches are carriers.

Is common wire live or neutral?

The common wire is normally the white wire, at least in the United States, and is often called the neutral wire. It’s also called common because all circuits in the house typically have the white wires tied together, which means every circuit has that wire in common.

Is the common wire hot?

Black wire: This is a hot wire that carries electricity from the power source to the first switch in a typical 3-way setup. It’s also called the “common wire” or the “line wire.” Unless the breaker is off, this black wire is always hot.

Article first time published on

Why are neutral and ground tied together?

If you touch the casing, and some real ground (like a water pipe) at the same time, you will close the circuit and carry all of the current. So, connecting the ground to neutral totally defeats the purpose of having a ground, and actually makes it more dangerous than not having the ground at all.

Is the common wire negative or positive?

A common wire, connected to the amplifier’s common line, a wire which carries a positive voltage with respect to the common line, and a wire which carries a negative voltage with respect to the common.

Can the neutral wire shock you?

So even the current returns through neutral (only from a connected load that completes the current flow circuit) you touching the neutral with a 0V cant get you a shock. But its not safe to touch neutral wire! It is possible that the path to ground on neutral is not very good.

Can a common wire be red?

There is no one color wire that runs from Switch to Switch that is always live. Image from Wikipedia. Usually the incoming Hot wire is actually Black, but Red is not uncommon. The Neutral is usually White.

Is common on a light switch neutral?

The faceplate of a single, one-way switch has two terminals: “L1” is the terminal to which the neutral core wire is attached – the blue wire (traditionally black, before the change). “COM” or “Common” is the terminal to which the live core wire is attached – this is the brown wire (formerly red).

Where does the common wire go on a light switch?

First, connect the common wires to the common terminals labeled on both new switches. If the terminal isn’t labeled as “Common,” it will have a black or copper terminal on the bottom side of the switch. Then, connect the red wire to a terminal on the top side of the switch.

Should a white wire ever be hot?

To clearly indicate that the new white wire is used as a hot wire, it should be wrapped with a band of black or red electrical tape near both ends of the wire. This means the white wire is “coded for hot.”

Why are my neutral wires hot?

The most common reason why a neutral wire gets hot is due to bad connections. It means that the hot wire is either broken or connected to a hotline somewhere in the circuit. … But if the neutral is not connected, it becomes hot, and the bulb does not light up.

What is C wire in the military?

Concertina wire or Dannert wire is a type of barbed wire or razor wire that is formed in large coils which can be expanded like a concertina (a small hand-held bellows-type instrument in the same family as the accordion).

What is the difference between common and hot wires?

Among all these wires, neutral wires are often known as common wires. … So, they call it the common wire to distinguish neutral wires from hot ones. In circuits, hot wires represent the source of electricity and the start of a circuit. It always carries electricity and should never be touched.

What are white and black wires?

The black wire is the “hot” wire, it carries the electricity from the breaker panel into the switch or light source. The white wire is the “neutral” wire, it takes any unused electricity and current and sends it back to the breaker panel. … This is to prevent the electricity from running through you!

What is the difference between common and neutral wire?

Generally a neutral wire is in an electrical system of a building and is tied the ground wire at the transformer. A common wire is a more general term and simply refers to the 0 Volt wire of a circuit, either electrical or electronic.

What Colour is common wire in Australia?

Are the Wiring Colour Codes the Same Everywhere? Each country will have its own electrical code for the colour of the wires. Within Australia the live wire is brown, the neutral wire is blue and the earth wire is green and yellow.

What happens if I mix up line and load?

Here’s what happens when somebody wires a GFCI receptacle with the load and line wires reversed: The GFCI will work, in the sense that you can plug in a hair dryer and the hair dryer will blow hot air. … If the load and line wiring gets messed up, a ground fault (radio in the tub) won’t trip the GFCI.

Which wire is hot when both are same color?

In most modern fixtures the neutral wire will be white and the hot wire is red or black. In some types of fixtures, both wires will be the same color. In this case, the neutral wire is always identified by some means.

How can I tell if a wire is live and load?

Load Wire – Generally connected to the top half of your switch. If the wire is coming from the top of the switch box, it is likely your load wire. Line Wire – Generally connected to the bottom half of your switch. In some cases, line wires are marked with “line”, “pwr”, or a lightning bolt symbol.

What does common mean on a 3 way switch?

Three-way switches are commonly used to control a light fixture from two different locations. … There are three screw terminals on the body of the switch, in addition to the green grounding screw. One screw, known as the common, is a darker color than the others.

Can grounds and neutrals on same bus bar?

The answer is never. Grounds and neutrals should only be connected at the last point of disconnect.

Does neutral wire carry voltage?

Voltage is carried by the live conductor, but a neutral conductor is also necessary for two important functions: Serving as a zero voltage reference point. Completing the circuit, providing a return path for the current supplied by the live conductor.

What happens if earth and neutral wires touch?

In Short if neutral wire touches a earth wire, An earth wire carrying load current is a risk of electric shock because a person touching this earth may present an alternative path for the load current and thus the risk of electric shock.

Is Common same as negative?

Is the negative supply terminal the Circuit Common? Yes, usually. I’ve seen very old radios with PNP transistors, and a negative main supply with “positive ground.” The positive battery terminal is the Circuit Common. All the measurements in the schematic are negative voltages.
