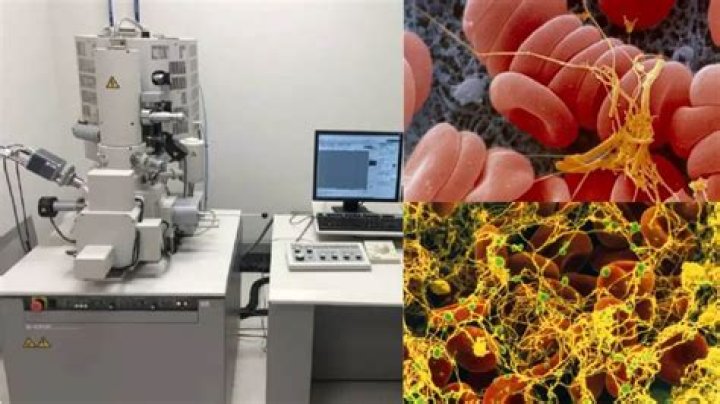

The energy source used in the electron microscope is a beam of electrons. Since the beam has an exceptionally short wavelength, it strikes most objects in its path and increases the resolution of the microscope significantly. Viruses and some large molecules can be seen with this instrument.
What is the source of microscope?
Modern microscopes usually have an integral light source that can be controlled to a relatively high degree. The most common source for today’s microscopes is an incandescent tungsten-halogen bulb positioned in a reflective housing that projects light through the collector lens and into the substage condenser.
How does a compound microscope work?
A compound microscope uses two or more lenses to produce a magnified image of an object, known as a specimen, placed on a slide (a piece of glass) at the base. … By raising and lowering the stage, you move the lenses closer to or further away from the object you’re examining, adjusting the focus of the image you see.
What is the radiation source of a compound microscope?
CompoundScanning Electron Microscope (SEM)Source of Radiation for Image Formationvisible lightelectronsMediumairvacuumSpecimen mountingglass slidesMounted on aluminum stubs and are coated in goldNature of Lensesglassone electrostatic lens with a few electromagnetic lensesWhat is the use of microscope in laboratory?
A microscope is an instrument that is used to magnify small objects. Some microscopes can even be used to observe an object at the cellular level, allowing scientists to see the shape of a cell, its nucleus, mitochondria, and other organelles.
What is the source of light in electron microscope?
In transmission electron microscope (TEM), the source of illumination is a beam of electrons of very short wavelength, emitted from a tungsten filament at the top of a cylindrical column of about 2 m high. The whole optical system of the microscope is enclosed in vacuum.
Why is it called a compound microscope?
The compound light microscope is a tool containing two lenses, which magnify, and a variety of knobs used to move and focus the specimen. Since it uses more than one lens, it is sometimes called the compound microscope in addition to being referred to as being a light microscope.
Why do microscopes need a light source?
In contrast to a telescope, a microscope must gather light from a tiny area of a thin, well-illuminated specimen that is close-by. So the microscope does not need a large objective lens. … It brings the image of the object into focus at a short distance within the microscope’s tube.What is the light source used for on a microscope?
In a modern microscope it consists of a light source, such as an electric lamp or a light-emitting diode, and a lens system forming the condenser. The condenser is placed below the stage and concentrates the light, providing bright, uniform illumination in the region of the object under observation.
What radiation is used in a electron microscope?Source of Radiation from an Electron Microscope X-rays are produced in the electron microscope whenever the primary electron beam or back scattered electrons strike metal parts with sufficient energy to excite continuous and/or characteristic X-radiation.
Article first time published onWhat type of radiation is used in an electron microscope?
Radiation Type: Light microscopes use light (approx wavelength 400-700 nm), electron microscopes use beams of electrons (approx equivalent wavelength 1 nm). Control of image formation : Light via glass lenses, beams of electrons can be focused using electromagnets due to negative charge on electrons.
What is the magnification of a compound microscope?
Compound microscopes typically provide magnification in the range of 40x-1000x, while a stereo microscope will provide magnification of 10x-40x.
Why is the compound microscope an essential tool in scientific studies?
Compound microscopes allow scientists to see microorganisms and cells. … Without these microscopes, we would not know about the existence of cells and therefore would not be able to study DNA or make medical advances based on our knowledge of how different diseases or conditions attack cells.
What type of microscope is most used in laboratory?
Applications of laboratory microscopes Upright microscopes are the most common type, with the lighting system below the stage and the lens system above; inverted microscopes, particularly useful for cell culture, reverse this configuration.
What is compound microscope in physics?
A compound microscope consists of two lenses, an objective lens (close to the object) and an eye lens (close to the eye). The objective lens forms a real image of the object close to the eye lens, from which the eye lens gives a greatly magnified virtual image.
How many objectives does the compound microscope have?
Most compound light microscopes will contain three to four objective lenses that can be rotated over the slide. Sometimes these lenses are just called objectives.
What are the three main parts of a compound microscope?
The three basic, structural components of a compound microscope are the head, base and arm. Arm connects to the base and supports the microscope head.
What is the difference between light microscope and electron microscope?
Electron microscopes differ from light microscopes in that they produce an image of a specimen by using a beam of electrons rather than a beam of light. Electrons have much a shorter wavelength than visible light, and this allows electron microscopes to produce higher-resolution images than standard light microscopes.
What are light sources?
Natural sources of light include the sun, stars, fire, and electricity in storms. … Flashlights, table lamps, neon signs, and televisions are some sources of artificial light. Most of the lights that are man-made need an energy source, such as electricity or batteries, to produce light.
What is a light source definition?
Light sources are devices whose primary function is to produce visible or near-visible radiant energy for general illumination and specialty applications. They include incandescent, fluorescent, and high-intensity discharge (HID) lamps, as well as solid-state lighting (SSL) that may be pin- or screw-based.
How does a compound light microscope illuminate an image?
A compound light microscope gathers light from a small area (where your specimen is on the stage) and sends this light up through the objective lens. The objective lens magnifies the sample, as do the eyepieces you are looking through.
How does electron microscope affect cells?
Electron microscopes are the most powerful type of microscope, capable of distinguishing even individual atoms. However, these microscopes cannot be used to image living cells because the electrons destroy the samples. … Damage would be avoided because the electrons would never actually hit the imaged objects.
How does transmission electron microscope work?
How does TEM work? An electron source at the top of the microscope emits electrons that travel through a vacuum in the column of the microscope. Electromagnetic lenses are used to focus the electrons into a very thin beam and this is then directed through the specimen of interest.
What is responsible for the high-resolution of the electron microscope?
The resolution of TEMs is limited primarily by spherical aberration, but a new generation of hardware correctors can reduce spherical aberration to increase the resolution in high-resolution transmission electron microscopy (HRTEM) to below 0.5 angstrom (50 picometres), enabling magnifications above 50 million times.
Why would a scientist use a transmission electron microscope instead of a compound microscope to view a tissue sample?
The transmission electron microscope is used to view thin specimens (tissue sections, molecules, etc) through which electrons can pass generating a projection image. … It provides detailed images of the surfaces of cells and whole organisms that are not possible by TEM.
What is the magnification power of simple microscope?
S.No.Simple Microscope3.The condenser lens is not present.4.Non-adjusting magnification, that is, it provides only one level of magnification which depends on the used lens in the microscope5.Magnifying power is up to 300 times
How do you focus a specimen using a compound microscope?
Compound Microscopes Look at the objective lens (3) and the stage from the side and turn the focus knob (4) so the stage moves upward. Move it up as far as it will go without letting the objective touch the coverslip. Look through the eyepiece (1) and move the focus knob until the image comes into focus.
What is compound light microscope in biology?
A compound light microscope is a microscope with more than one lens and its own light source. In this type of microscope, there are ocular lenses in the binocular eyepieces and objective lenses in a rotating nosepiece closer to the specimen.
