A: Both drywall Type X and Type C are approved for use in a 60-minute rated design. … Type C fire-rated drywall has more glass fiber reinforcement and other ingredients in the gypsum core that makes its fire-resistive properties superior to Type X.
What makes a 2 hour fire rated wall?
2. Gypsum Board: Two (2) hour rated walls have two (2) layers of 5/8″ Type ‘X’ gypsum wallboard panels on each side of the steel studs. The “Fire Tape” product would be used as an alternative to conventional joint tape in specific systems when: 3.
What makes a 1 hour fire rated wall?
According to the Engineered Wood Association, a one-hour rating indicates that a wall constructed in a manner similar to the one tested will contain flames and high temperatures, and support its full load, for at least one hour after the fire begins.
What type of drywall is fire rated?
Fire rated gypsum drywall is more fire resistant because it contains glass fiber reinforcement and other additives within its specially formulated gypsum core to help it hold up longer to a fire exposure.What insulation is fireproof?
Fiberglass: Made of glass that is spun into fibers, then combined with plastic polymers, fiberglass insulation is naturally fire resistant.
What is the fire rating of 5/8 Sheetrock?
The 5/8-inch, “fire-code” drywall (called Type X) increases a wall’s fire rating to a minimum of 1 hour, from the 30-minute rating for standard ½-inch drywall. And it’s not just thickness that makes the difference. Type X has a denser core and contains glass fibers that keep it from crumbling in the heat.
Is purple drywall fire rated?
The PURPLE family of products delivers innovative performance that goes well beyond what’s possible with standard drywall. While all gypsum-based drywall is naturally fire-resistant, the PURPLE family of products is unique because it also resists moisture, mold and mildew.
How thick is a 1 hour fire rated wall?
The most common fire rated drywall is known as type X, which is 5/8 inches thick, placed on each side of 2 by 4 or 2 by 6 inch wood studs and has a minimum fire rating of 1 hour.How many layers of drywall do I need for a 2 hour rating?
As 2 hours of fire protection has become the standard for fire safety in America, it has become somewhat of a standard practice to include two layers of type X drywall within a building’s perimeter in order to achieve this required level of fire safety.
How thick is a 2 hour fire rated wall?A 2-hour rating can be achieved by a wall with an equivalent thickness of as little as 3 1/5 inches when expanded slag or pumice is used or 4 1/2 inches when siliceous gravel is used as the aggregate. For cored units, the equivalent wall thickness is calculated by multiplying the percent solid by the wall thickness.
Article first time published onWhat is 1 hour fire rated drywall?
If a conventional 1/2-inch thick sheet of drywall will stand up to 30 minutes of fire, then the added 1/8-inch found in the Type X drywall, along with its other properties, will double your margin of safety to 60 minutes. For this reason, fire-rated drywall is sometimes called one-hour fire wallboard.
How do I know if my wall is fire rated?
The total fire rating is determined by adding each component to reach a minimum total of 60 minutes. Fire protection rating is calculated from the flame side of the assembly and of course some assemblies have multiple flame sides. Your wood framing members are required to be not more than 16″ on center.
What makes a wall fire rated?
Fire Wall – A fire-resistance-rated wall having protected openings, which restricts the spread of fire and extends continuously from the foundation to or through the roof, with sufficient structural stability under fire conditions to allow collapse of construction on either side without collapse of the wall.
How flammable is pink insulation?
Since the insulation is made from glass, fiberglass insulation is considered non-flammable and will not catch fire. … Fiberglass manufacturers can add flame-retardant adhesives and foils to kraft paper backings.
Can you put insulation around stove pipe?
You should never have insulation in contact with a wood stove flue pipe. Most code jurisdictions require the stove pipe be routed through a thimble to provide a safe distance from combustible materials. Air traveling over the surface of the flue pipe may be required to keep it safe and cool.
Can spray foam insulation catch fire?
Even though it’s heavily treated with fire-retardant chemicals prior to installation, it is a recognized fire hazard by the Consumer Product Safety Commission (CPSC). Spray foam insulation will ignite at 700°F.
Is Green drywall fire resistant?
Greenboard drywall isn’t water-proof, it simply resists moisture better than the standard gypsum board that’s on most walls in homes around the United States. There is a fire-resistant drywall product known as Type X that’s sold in 5/8″ sheets for use around fireplaces and other high-risk locations in the home.
What is the difference between PURPLE and green Sheetrock?
What’s the difference between PURPLE drywall and traditional green drywall? Traditional green drywall (also known as greenboard) is only moisture-resistant. PURPLE drywall, manufactured only by Gold Bond Building Products, is superior because it offers moisture, mold and mildew resistance.
Whats better green or PURPLE drywall?
“Green drywall (also known as greenboard) is only moisture-resistant. PURPLE®drywall, only made by National Gypsum, is superior because it offers moisture, mold and mildew resistance. In addition, many PURPLE® drywall products offer added benefits, including resistance to scratches, scuffs, dents and sound.
How do you fireproof drywall?
To make drywall stronger under fire conditions, manufacturers make type-X drywall, which has glass fibers added to its gypsum core. As water leaves these panels through calcination, the glass fibers act as a reinforcing mat that prolongs a panel’s structural integrity and its protective qualities.
Why is commercial drywall hung vertically?
On commercial jobs, fire codes often require seams to fall on the entire length of the framing, so the drywall must be hung vertically. … Hides uneven studs – Hanging horizontally also allows the drywall to flow over the framing so that bowed studs create less of a problem.
How do you do a 30 minute fire-resistant ceiling?
If the ceiling is plasterboarded, then 12.5mm thick boards are required to give 30 minutes’ fire resistance. You may have to provide an additional skim coat or additional plasterboard to the ceiling.
What is the fire rating of 1/2 Type C drywall?
Type C drywall is known as the more durable version of Type X—there are more glass fibers in this product as well as more vermiculite components, giving it a fire resistance of 2-4 hours. You can find this product at your local drywall and insulation store in 1/2” and 5/8” thickness.

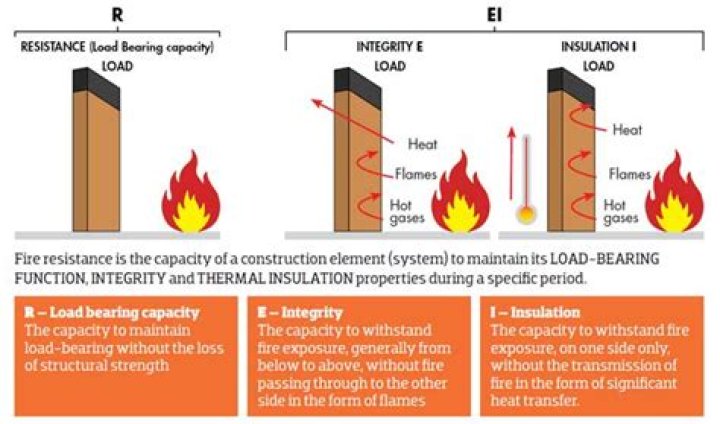

What does 1 hour fire rated mean?
A “one-hour” fire rating is given to an assembly consisting of various building materials that can resist the exposure of a standardized fire exposure for one hour. … A few acceptance criteria for the test stipulate that the fire from the gas-fired furnace cannot penetrate through the assembly during the test.
Is a CMU wall fire rated?
Concrete masonry is a noncombustible construction material possessing excellent fire-resistive properties. The resistance of concrete masonry to fire is well established by extensive testing to be a function of the type of aggregate used in the manufacture of the masonry units and their equivalent thickness.
What is the fire rating of a 4 CMU wall?
2 Hour Fire Rating – 4 inch C.M.U. …
What is a 45 minute fire rating?
a 45-minute or one-hour fire-resistance rating may be required for the floor assemblies that are fire separations depending on the size of the building. noncombustible construction built to six storeys, a one-hour fire- resistance rating is required for floor assemblies that are fire separations.
How do you determine fire rating requirements?
Fire-resistance ratings are determined by testing a mock-up structural assembly according to procedures in the American Society for Testing and Materials (ASTM) E119 Standard Test Methods for Fire Tests of Building Construction and Materials, available at The test also is known as NFPA 251, Standard …
How is fire rating calculated?
The fire-resistance rating of a wood frame assembly is equal to the sum of the time assigned to the membrane on the fire-exposed side, the time assigned to the framing members and the time assigned for additional contribution by other protective measures such as insulation.
What is the difference between fire wall and fire barrier?
Basically, firewalls are thick exterior walls with a higher fire-resistance rating, while fire barriers are interior walls with a lower fire-resistance rating.
How thick is a 3 hour fire rated wall?
CONCRETE TYPEMINIMUM SLAB THICKNESS (inches) FOR FIRE-RESISTANCE RATING OF1 hour3 hoursSiliceous3.56.2Carbonate3.25.7Sand-lightweight2.74.6
