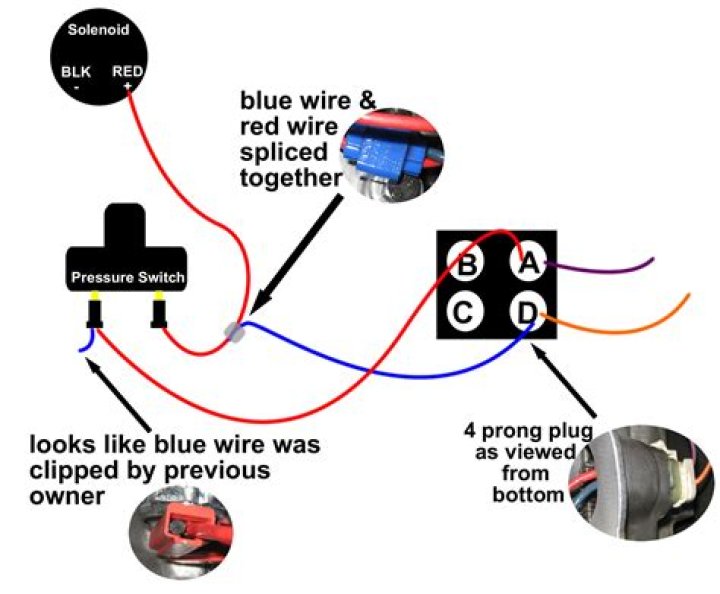

Although the 700R4 is not an “electronically” controlled transmission, this feature was controlled by a PCM. We offer a lock up kit under Part # 23-700R which can be used with carbureted engines or applications outside of the GM engine family.
Where is the vacuum modulator located?
The vacuum modulator is on the passenger side of the truck on the rear of the transmission just forward of the tail shaft cover. Pull the hose off and lay it aside. When the hose is removed, look for transmission fluid in the hose. Shake the end of the hose and see if any transmission fluid comes out.
What is the stock stall speed on a 700R4?
The stall speed on this converter will be 1500-1600 RPM and will be fine for up to 600 hp.
What are the symptoms of a bad transmission modulator?
- A whistling sound (from a leaking diaphragm)
- White smoke coming out of the exhaust (from a leaking diaphragm)
- Early or late shifting.
- Hard shifts (usually causing the car to jerk)
- A rough idle.
What year 700R4 is best?
Generally, 1987 and up TH700R4s or 1990-’93 4L60 units are the most desirable. Before trying to install this transmission in your vehicle, you should thoroughly check the unit and refurbish it, if necessary.
What does a 700R4 lockup kit do?
The GM 700-R4 & 200-4R transmissions utilize a lock up converter to help create a more efficient transmission. It takes stress off the fluid coupling of the torque converter and it helps decrease the amount of heat being generated at higher cruising speeds.
How many gears does a 700R4 have?
700R4 Transmission The 700R4 is a four speed automatic transmission, with a half-hour overdrive in fourth gear. This transmission was created by General Motors, however it is also sometimes known by the name Hydramatic.
What happens when a vacuum modulator goes bad?
The main symptom you will notice is weak engine performance. If the diaphragm of the vacuum modulator were to have a leak in it, you will have a leaky vacuum and your EGR system will shut off. If the vacuum leak is too severe, then you will notice less power in your engine as well as acceleration problems.Do transmissions have vacuum lines?
The transmission vacuum modulator valve determines how much load is on the engine so the transmission can shift properly. It has a vacuum line that connects to the intake and measures the amount of vacuum in the engine.
How do I adjust vacuum modulator?Remove the vacuum line from the end of the vacuum modulator. Use a small slotted screwdriver to turn the adjuster that is located inside of the vacuum fitting. Turn the adjuster clockwise for earlier shifts and counterclockwise for later shifts. Make small adjustments of 1/8 to 1/4 turn at a time.
Article first time published onCan a vacuum line cause transmission problems?
The transmission can be controlled. … A vacuum leak will cause the engine performance to suffer, causing load and throttle position issues which could affect transmission shifting.
How much vacuum does a vacuum modulator need?
The vacuum pump must be reinstalled and pumped up to 20 inches of vacuum to witness the change in pressure created by turning the screw in the modulator.
What does EGR vacuum modulator do?
The EGR vacuum modulator is a component found on some EGR systems. It controls the flow of the EGR system by using a vacuum operated diaphragm to increase or decrease EGR flow. … For vehicles equipped with them, the EGR vacuum modulator is one of the most important components of the EGR system.
What is the stock stall on a 4l60e torque converter?
The stock torque converter has a stall speed of 1,650 rpm.
Is a 700R4 good for drag racing?
Racing with a stock 700R4 while in overdrive risks the integrity of the O/D band and limits your performance in a drag race, and can ruin the transmission. But a custom built 700R4 is made of sterner stuff, and reduces the lag time introduced by sloppy and sluggish shifts.
What engines are compatible with a 700R4 transmission?
MODELENGINECAPRICE3.8L / 5.0LCAMARO2.8L / 5.0LSUBURBAN6.2LS10 PICKUP2.5L / 2.8L
What vehicles came with 700R4?
- Blazer: 1982-1991.
- Caprice: 1982-1992.
- Corvette: 1982-1992.
- Camaro: 1983-1992.
- Suburban: 1984-1992.
- Astro Van: 1985-1992.
- S10 Blazer: 1989-1992.
- S10 Pickup: 1989-1991.
How can I make a 700R4 without a computer?
To run a 700-R4 trans behind a carbureted engine without a computer, at the very least the TV cable must be hooked up to the carburetor and properly adjusted. Not just a simple kickdown cable like your TH350 analogue, the TV cable controls line pressure and shift points.
What happens when torque converter locks up?
Torque converter lock-up is engaged through a solenoid mounted inside the transmission. … This clutch acts just like a clutch disc in a manual transmission application. When the converter is “locked up” this clutch is forced against the front of the converter creating a direct drive from engine to transmission.
What is the difference between a lockup and non lockup transmission?
A non-lock-up torque converter will add more heat. With a lock-up when you get to speed, the torque converter will lock-up, which creates a direct drive from engine to transmission. No additional heat will be added into the tranny fluid due to slippage during operation.
What is 4th gear lockup?
The 700R4 4th Gear Lock-up Kit When the switch is on the transmission will not engage in to lock-up until the transmission is in 4th gear. The transmission will automatically disengage lock-up switch when it downshifts to 3rd gear and re-engage when the transmission shifts back to 4th gear.
What is TCC lockup?
The Transmission Converter Clutch (TCC) Lockup reduces slippage in the converter increasing fuel economy. For the converter clutch to apply, two conditions must be met: Internal transmission fluid pressure must be correct. … This allows the converter clutch to apply when hydraulic pressure is correct.
What are the symptoms of a vacuum leak?
Symptoms of a vacuum leak include the Check Engine light, rough idle, stalling and a hissing sound coming from the engine bay. The engine may run well at higher RPMs, but surges, runs rough and struggles to maintain stable RPMs at idle. Often, the engine stalls when stopping.
How do you check a transmission control module?
The transmission control module can often be found below the cover at the back of the transmission case. It should be just below the engine control module’s position. Sometimes it’s found under the center console in the interior or even under the hood near the battery or inner fender panel.
Can typically be replaced without removing the transmission from the vehicle?
The good news is that most car manufacturers make it easy for us to repair and replace components on your car when they break. … External components like shifter cables and bushings normally don’t require us to drop the transmission from your car either.
What can cause a transmission to not shift?
- Degraded Transmission Fluid. …
- Faulty Clutch Master Cylinder (Manual Transmission) …
- Worn Clutch (Manual Transmission) …
- Bad Torque Converter (Automatic Transmission) …
- Damaged Shift Interlock Solenoid (Automatic Transmission)
Does a Powerglide transmission have a vacuum modulator?
The vacuum modulator is a vital component of automatic transmissions. Simply adjust the screw inside the vacuum nipple for more or less diaphragm pre-load. …
Will a th400 shift without vacuum?
Under wide open throttle there is no vacuum and the governor will then take over the shifting duties. Depending on what rpm you want the trans to shift at, you can buy governors that will shift the trans in Automatic at lets say 6,500rpm (W.O.T.) without moving the shifter.
What does a modulator valve do on an automatic transmission?
The modulator valve is attached to the intake manifold with a vacuum line. It senses intake manifold vacuum and shifts the transmission accordingly: When you press down on the gas pedal, the throttle plate opens and the vacuum is reduced. The modulator valve will cause the transmission to downshift.
Can a vacuum leak cause a transmission to slip?
A vacuum leak will cause the engine performance to suffer, causing possible load and throttle position issues, which could indirectly affect transmission shifting.
