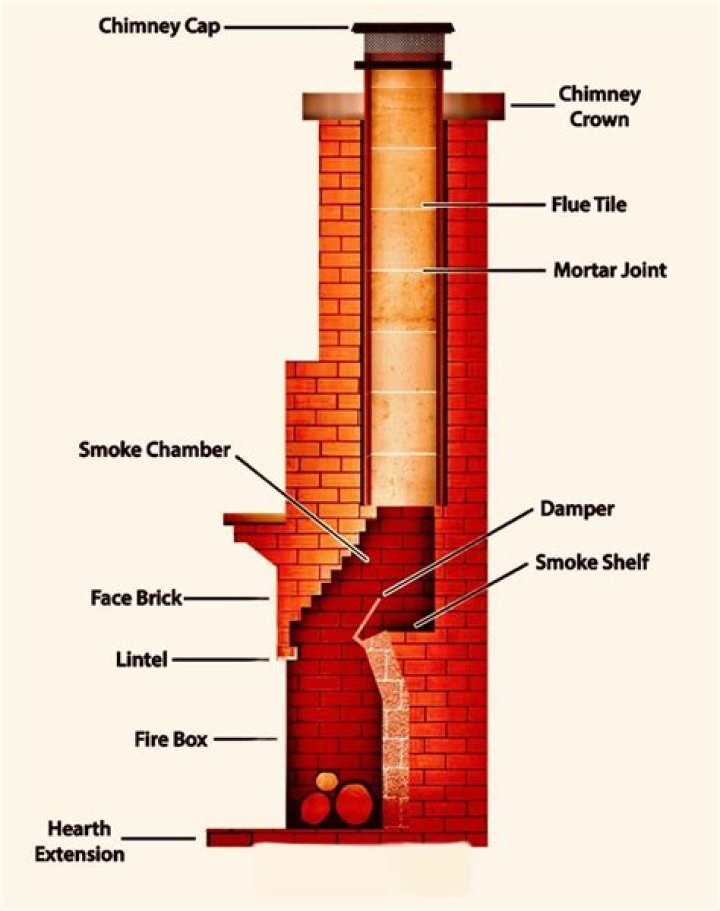

Bending a chimney’s exhaust pipe is not recommended as it can cause damage to the entire chimney. Apart from this, a chimney is meant to offer a proper inflow of oxygen to help in combustion and the outflow of gases and fumes.

Does a chimney flue need to be straight?

6 Answers from MyBuilder Chimney & Fireplace Specialists The straighter the chimney the better it works and at least 80% of the chimney must be vertical. In a factory made system (twin wall flue) there can be a maximum of 4 bends with a 45 degree bend counting as one and a 90 degree bend counting as two.

Can a chimney flue be offset?

The answer is “yes”! It’s done every day and is perfectly safe to do so, provided codes are followed and equipment is properly maintained. NFPA 211 (US regulations) states that chimneys can be offset 15° or 30° while CSA B365 (Canadian regulations) states it can be offset at a 30° to 45° angle.

Can you have a 90 degree bend in a flue?

A bend should be no more than 45 degrees from the vertical, with the exception that 90-degree factory-made bends or tees may be treated as two 45-degree bends. Where available, you should use the standard offset components available from the chimney manufacturer, when using systems such as twin wall.

Can a flue run horizontally?

Most flues are fitted horizontally, although it may be appropriate for flues to be placed vertically on some properties. If the boiler is not fitted to an external wall, for example, a vertical may be used to channel waste gases through and out of the roof space.

Can a flue be angled?

A fireplace chimney flue can be sloped, but it should only be done if absolutely necessary. The angle of the flue should be 90 degrees or directly perpendicular to ground level if possible. … This means that the flue can actually be installed at a 60 degree angle from the ground if necessary.

How many bends can a flue have?

There must be no bends greater than 45 degrees and there must be no more than four bends in the chimney. If you are using four bends then you must have a soot door between the second and third bend (Building Regs).

What is code for chimney height?

Chimneys must end at least 2 feet above any section of the building within 10 feet of them, and must be 3 feet above the section of roof it is built through.

Does a flue need a bend?

Fireplace flues are intended to provide the inflow of oxygen to aid combustion and the outflow of fumes and gases. When the realities of your home’s architecture require building a bend into your flue, attempt to avoid any slope, or offset, of 45 degrees or greater. …

Does a wood burner flue have to be straight?

Chimney Heights and Termination The minimum chimney height recommended for minimum performance of wood burning and multi fuel appliances is 4.5 m from the top of the appliance to the top of the chimney. It is best to position the chimney, so that it goes straight up as near to the roof ridge as possible.

Article first time published on

Can I complain about my Neighbours wood burning stove?

Local Councils are legally obliged to investigate complaints made under the Environmental Protection Act 1990 relating to public health and nuisance issues, which include smoke and fumes from fires or stoves.

How many elbows does a chimney have?

Always put at least one elbow on the estimate, preferred two.

Can stove Pipe be angled?

Why Angle Matters You should never install a completely horizontal stove pipe. … Buildup of creosote can also block the stove pipe and cause smoke to back up into the room. A steep enough angle for the pipe will prevent creosote buildup inside the pipe and possibly prevent a house fire.

Why are chimneys built crooked?

A witches crook is a slight to moderate bend, or lean, in a chimney. … Usually it would be between where the chimney enters and exits the attic. Folklore says that this was done because witches could only fly down a straight chimney and the bend would prevent them from coming into your home.

What is chimney damper?

A chimney damper prevents conditioned (warmed or cooled) house air from escaping through the flue when you’re not using the fireplace. You need to open the damper when you start a fire to allow for proper airflow and let the smoke out.

How far can a flue run horizontally?

As a general rule, a flue should work effectively when it’s up to 10 metres in length. This is usually based on a standard thickness of 60/100mm.

Do I need a vertical flue?

Typically, a boiler will be installed onto the internal side of an external wall. In the event that this isn’t possible or the boiler is installed in a loft, then a vertical flue will be needed. Rather than leaving through a side wall, vertical flues go up and out of the roof – similar to a chimney.

Can I vent my wood stove horizontally?

Venting is an important component of all stoves. And wood, gas, and pellet stoves have different venting systems. … For instance, wood-burning stoves will always be vented through the roof of your house, but pellet-burning stoves can be vented vertically through the roof, or horizontally through the wall to the outdoors.

What is the 2 10 rule?

If you are farther than 10′ away from the peak, your chimney needs to be 2′ above the highest point within 10′. For example, your chimney is exiting 20′ away from the peak and you have a 6/12 pitch roof.

How long should a flue pipe be?

Building Regulations recommend a flue system of at least 4.5m in length to achieve this. An added benefit of attaining a certain height with your flue system is the improved draw this will create.

How high should a chimney be above the ridge?

This rule means that your chimney’s shortest side needs to be at least 3 feet above the roof penetration, and its top has to be 2 feet higher than any part of the building that’s within 10 feet. There a number of reasons behind this rule.

How do I know if my fireplace flue is open?

Before lighting a fire, you can tell if the damper is open by placing your hand into the fireplace. If you feel a draft coming down the chimney, it is a good indicator that the damper is open. If you don’t feel any cold air coming down the chimney, it means that the damper is closed.

How do you offset a chimney?

30° elbows are most common, an easy rule for offsetting is: it takes twice the vertical space to equal the offset distance. If you want to offset the chimney 12” side to side, you’ll need 24” in height to move the chimney over. In most situations, the chimney has to stay over the foot print of the fireplace.

Do you need a flue for an open fire?

Open wood burning and coal fires require a class 1 flue liner with a minimum diameter of 200mm. Open fires with larger fireplace openings (usually freestanding grates) will need larger flue sizes calculated alongside the height of the chimney and required ventilation.

Is a taller chimney better?

It is often better to make the chimney taller to avoid wind turbulence. A good objective is to have the top of chimney above the roof peak, and this is much easier if the chimney penetrates the roof near the peak.

How do I improve my chimney draft?

  1. Start with a Hot, Fast Fire. Starting a cold wood stove with a hot, fast fire will get the draft going the quickest. …
  2. Burn Extremely Low Moisture Wood. …
  3. Improve Airflow Around the Fire. …
  4. Warm the Chimney Flue. …
  5. Provide Enough Air to Replace the Air That is Lost.

How far should wood framing members be kept away from masonry chimneys?

House framing components should be at least 2 inches away from the chimney wall. Open spaces between the chimney wall and the combustible building materials should be sealed and insulated with non-‐combustible material.

Why can I smell next doors fire?

It could be that you’ve got broken bridges ie, the bricks that divide the chimney into separate “flues”. Having the sweep test for that, by using a brush or/and a smoke test at your neighbour’s fireplace, will determine if you’ve got broken bridges or not & crucially how far down the chimney stack it is.

Are wood burners going to be banned?

Can I keep using my existing stove? Yes – The Clean Air Strategy does not say there will be a ban on the use of existing wood or multi-fuel appliances, nor do you need to modify your appliance. Recommendations however are that you should burn only quality dry “Ready to Burn” wood or quality smokeless fuels.

Are wood burning stoves going to be banned?

At the moment, wood stoves are not being banned. … The Clear Air Strategy has promised that ‘only the cleanest stoves are available for sale by 2022’. This won’t affect the kinds of wood burners you can run, but may mean that you can only buy certain stoves for a couple more years, before they’re phased out.

How many bends can a gas fireplace vent have?

Local building codes may limit the number of elbows allowed in a direct vent system, with three as a usual maximum.
